船岸連接電纜
- 品牌：???紅旗電纜
- 型號：???ADEF(CADEFR)/DA/SA ADEXF(CADEXFR)/DA/SA ADEU(CADEUR)/DA/SA ADEXU(CADEXUR)/DA/SA
船 岸 連 接 電 纜
SHIP-TO-SHORE CONNECTION CABLES
|
用 途 Application |
|
適用于船舶停港口時接入岸上電源并向船 It is applicable to the power connection line connected 舶供電的電源連接線。 to the shore power supply and supplying power to the ship 取得CCS工廠（型式）認可證書 when the ship stops at the port. |
|
標準 |
Standard |
|
IEC60092-350 |
IEC60092-350 |
|
IEC60092-353 |
IEC60092-353 |
|
IEC PAS 80005-3 |
IEC PAS 80005-3 |
|
T/CAS 429 |
T/CAS 429 |
|
型號Type |
名稱Description |
|

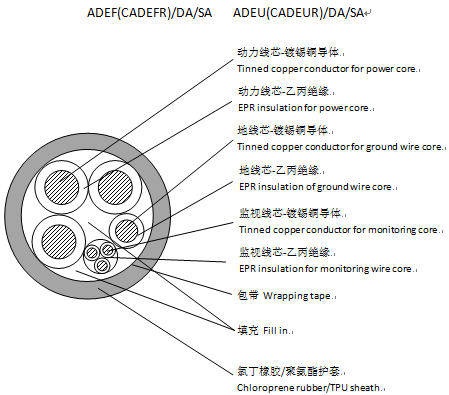

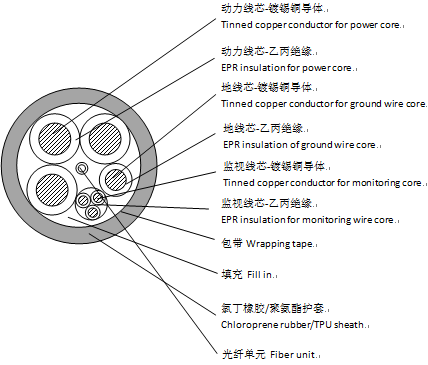

ADEF(CADEFR)/DA/SA |
乙丙絕緣氯丁橡膠護套船岸連接電纜，DA/SA型 EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA |
|

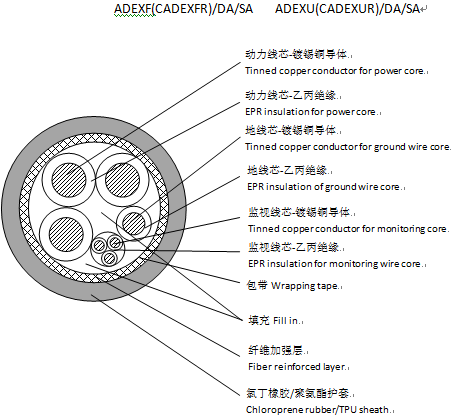

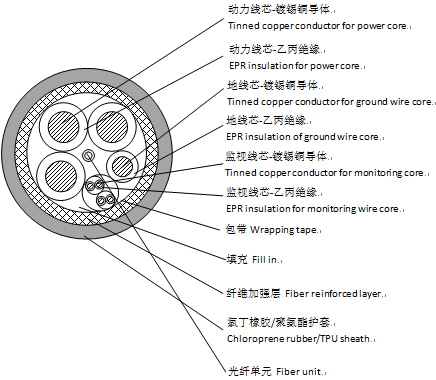

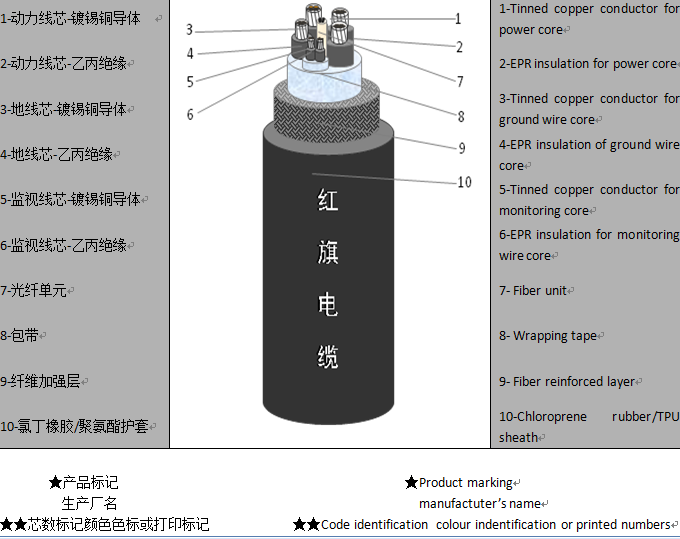

ADEXF(CADEXFR)/DA/SA |
乙丙絕緣纖維編織加強層氯丁橡膠護套船岸連接電纜，DA/SA型 EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA |
|
ADEU(CADEUR)/DA/SA |
乙丙絕緣聚氨脂護套船岸連接電纜，DA/SA型 EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA |
|
ADEXU(CADEXUR)/DA/SA |
乙丙絕緣纖維編織加強層聚氨脂護套船岸連接電纜，DA/SA型 EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA |
|
船岸連接電纜 電壓等級：0.6/1kV 90℃ |
|||||||
|
芯數×動力線芯 標稱截面 No.Of core×nominal cross sectional area of power core (mm2) |
芯數×地線芯標 稱截面 No.Of core×nominal cross sectional area of ground wire core(mm2) |
芯數×監視線芯 標稱截面 No.Of core×nominal cross sectional area of monitoring core (mm2) |
電纜最大外徑Max.acceptable
cable overall diameter |
參考重量 Reference weight |
|||
|
U |
F |
U |
F |
||||
|
1×70 |
- |
- |
20.9 |
22.8 |
1066 |
1170 |
|
|
1×95 |
- |
23.2 |
25.6 |
1406 |
1552 |
||
|
1×120 |
- |
25.4 |
28.1 |
1712 |
1887 |
||
|
1×150 |
- |
28.1 |
30.7 |
2090 |
2282 |
||
|
1×185 |
- |
30.8 |
33.7 |
2523 |
2756 |
||
|
1×240 |
- |
34.7 |
38.0 |
3309 |
3617 |
||
|
3×25 |
1×16 |
2×2×1.5 2×2×2.5 1×2×1.5 1×2×2.5 3~9×1.5 3~9×2.5 |
30.6 |
33.8 |
1853 |
2078 |
|
|
3×35 |
1×35 |
34.6 |
37.9 |
2563 |
2863 |
||
|
3×50 |
1×50 |
40.6 |
44.4 |
3643 |
4048 |
||
|
3×70 |
1×50 |
44.8 |
49.1 |
4462 |
4962 |
||
|
3×95 |
1×50 |
49.2 |
54.0 |
5663 |
6280 |
||
|
3×120 |
1×70 |
54.6 |
59.9 |
6994 |
7741 |
||
|
3×150 |
1×95 |
60.8 |
66.6 |
8714 |
9620 |
||
|
3×185 |
1×95 |
65.6 |
72.1 |
10235 |
11352 |
||
|
3×240 |
1×120 |
74.2 |
81.4 |
13382 |
14789 |
||
|
產品主要性能 |
Main performance |
|
具有耐阻燃、日光老化、耐磨、抗撕、耐鹽霧、耐循環彎曲（滿足IEC80005.1規定的5000次卷繞試驗）及優良的電性能（耐壓測試3.5KV/5min）。 |
flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min). |
|
產品使用特性 |
Product features |
|
額定電壓 U0/U 為0.6/1KV ; 最低工作溫度（靜態）為-40℃；導體允許長期最高工作溫度為90℃；最大短路時間為5S時導體最高工作溫度不超過250℃；電纜最小彎曲半徑（靜態）為電纜外徑D的6倍。
|
Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40℃; The maximum allowable long-term operating temperature of the conductor is 90℃; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250℃; The minimum bending radius (static) of the cable is 6 times of the cable diameter D. |
